Introduction

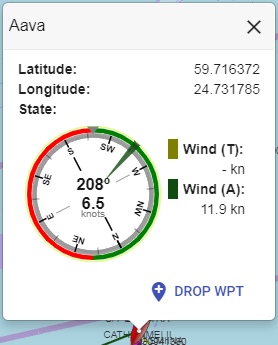

• Moving Vessel / Map display with vessel Heading / Bearing and True Wind / Apparent Wind lines.
• Charts: display including both online and locally hosted.
• Resources: List and filter Routes, Waypoints, Notes and Regions.
  • Add / Edit / Delete resources
  • Set active route
  • Import resources from GPX files.

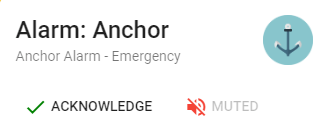

• Alarms / Notifications: Displays both visual and audible notifications.
  • Anchor Watch
  • Depth

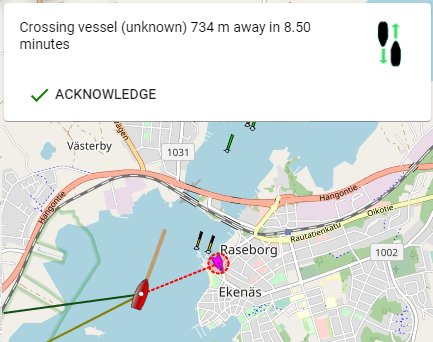

  • Crossing Vessel / Closest Approach
• Instrument Panel: allows you to select from the apps installed on your Signal K server for display.

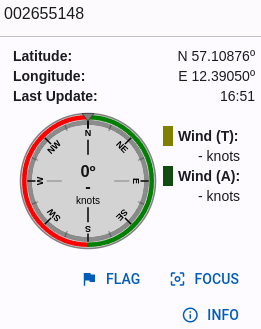

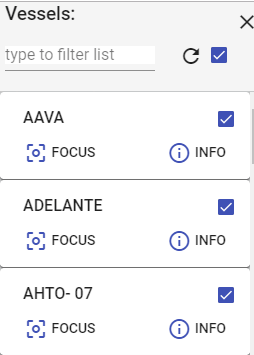

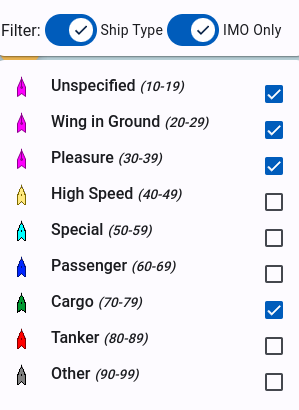

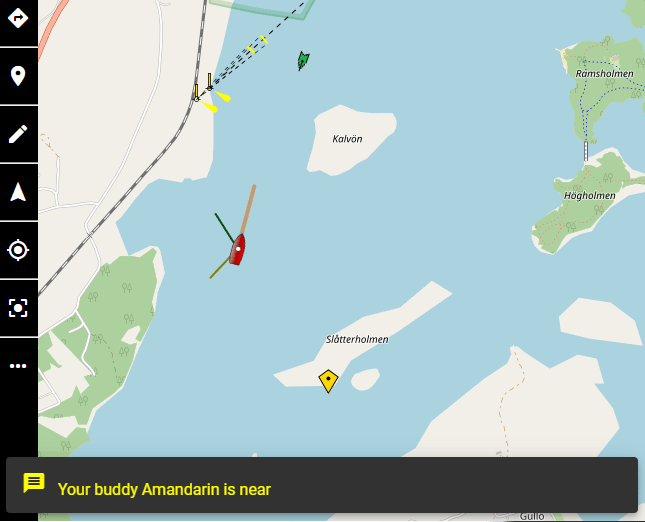

• Other Vessels: display other vessels on map.

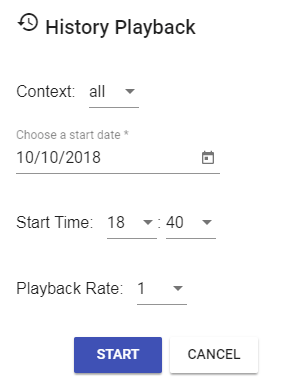

• History Playback: replay timeseries data from the Signal K server.

Deprecations

• Built-in PyPilot support - Freeboard-SK now uses the Signal K Autopilot API exclusively and PyPilot settings have been removed from PLugin Config. The Signal K Autopilot API aenables operation with a wider range of autopilot devices.
  To continue using autopilot functionality, install the pypilot-autopilot-provider plugin on the Signal K server.


Signal K Server

• Resources API: for the storage and retrieval of resources
• Course API: to set a destination or activate a route
• Autopilot API: to enable autopilot operations

• resources/routes, resources/waypoints, resources/notes, resources/regions - Serve resources as well as accept and persist resource data submitted to these paths.
• resources/charts - Serve chart resources.
• navigation/anchor, notifications/navigation/anchor - Serve and accept `position`, `maxRadius` values as well as calculate `currentRadius` and serve notifications.
• notifications/environment/depth - Serve notifications for belowKeel, belowSurface and belowTransducer.
• notifications/navigation.closestApproach .
• Standard Alarms - Serve notifications for notifications/mob, notifications/sinking, notifications/piracy, etc.
• navigation/course (Signal K Course API) - freeboard makes use of the course API to set a destination or activate a route.
  It is expected that the server will initiate any subsequent calculations and related value updates.

Node Server Plug-ins:

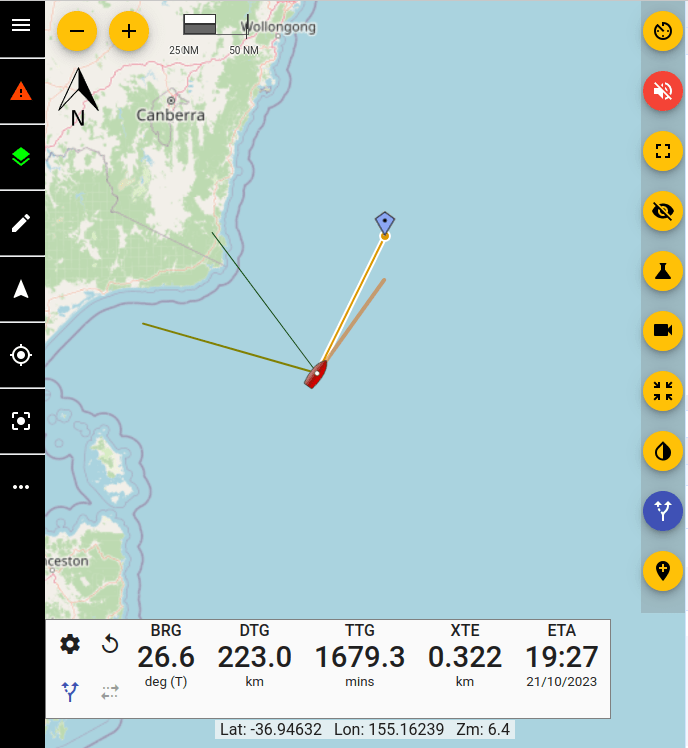

Display

• menu Main Menu: Displays the main menu. (See menus for more.)

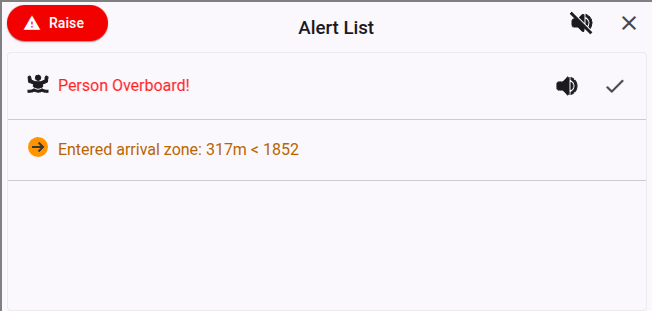

• warning Alarms: Displays the alarms screen to raise / clear alarms. (See alarms for more.)
• layers Resources: Provides access to resources such as Charts, Routes, Waypoints, etc. (See resources for more.)
• edit Draw Menu: Provides access to options that allow the drawing / editing of resources. (See menus for more.)
• navigation Heading / North Up: Toggles between Heading / North Up mode.
• my_location Follow Vessel On / Off: Toggles Follow Vessel mode to keep the vessel at the centre of the screen.
  Note: this option is disabled when vessel position is not available.
• center_focus_strong Centre Vessel on screen: Note: This option is disabled when vessel position is not available.
• more_horiz More Actions: Provides access to the following options:
  • Clear / Refresh Vessel Trail: When trail is available from the server selecting this menu item will reload the trail from the server.
  • Clear Destintation / Active Route: clears active destination or de-activates an active route.
  • Clear Course Data: clears the current course data.
  • Trail to Route: create a route from the current vessel trail.
  • Show / Hide Course Data: Toggle the display of course data.
  • Show / Hide Vessels: Toggle the display of other vessels.
  • Show / Hide Notes: Toggle the display of notes.
  • Show weather forecast data. Weather forecast data from the weather station closest to the vessel location. (Requires Weather API enabled in Server Admin -> Plugin Config -> Freeboard-SK)
  • Settings: Open the Settings screen.

• av_timer Instrument panel: The instrument panel is used to display selected Web App(s) installed on the Signal K server.
  The default instruments shown are @signalk/instrumentpanel

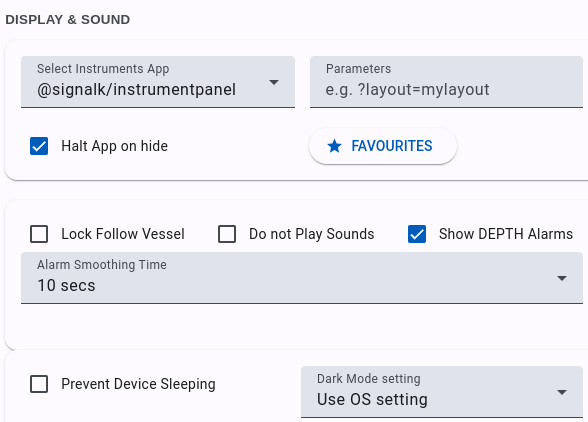

  Use the Settings screen to:
  • Select the Web App to display
  • Select one or more Favourites that can be switched into view by using the arrow_back_ios and arrow_forward_ios buttons.
  • You can also open the displayed Web App in it's own window by clicking the open_in_new button.
• volume_off Web Audio Off: Displays if browser audio is NOT activated. If displayed then no alarm sounds will be audible.
  Click this button to enable web audio to hear alarm sounds.
• fullscreen Fullscreen mode: Displays application in fullscreen mode.
  Available only on supported devices.
• visibility_off Prevent Device Sleep: Sets 'Wake Lock' mode for the current session to prevent the device from entering sleep mode when no user input has been received. See Settings for more.
  Available only on supported devices.
• science Experiments: Provides access to experimental features which are being considered for inclusion into the main application. See experiments for more.

• videocam Video: Displays the video stream that has been configured in settings.
  Available only on supported devices.
• zoom_in_map Constrain map zoom: Limit minimum and maximum zoom levels to the zoom extent of the selected charts.
• invert_colors Invert Map feature text label color: Toggle the text label color of features to improve visibility on dark map backgrounds.
• alt_route Display Autopilot console: Available when the Autopilot API is detected on the server. Displays the autopilot console enabling operations permitted by the Autopilot API.
• add_location Drop Waypoint: Place new waypoint at vessel location.

	Heading
	bearing
	True Wind
	Apparent Wind

Navigation

1. Activate a Route: Once activaed select a point along the route.
2. Go To Waypoint: Select a waypoint as a destination.

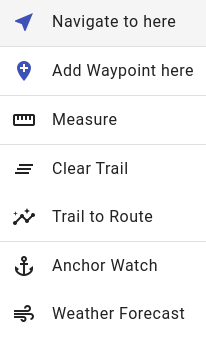

3. Navigate to here: Right click anywhere on the map and select the option from the menu.

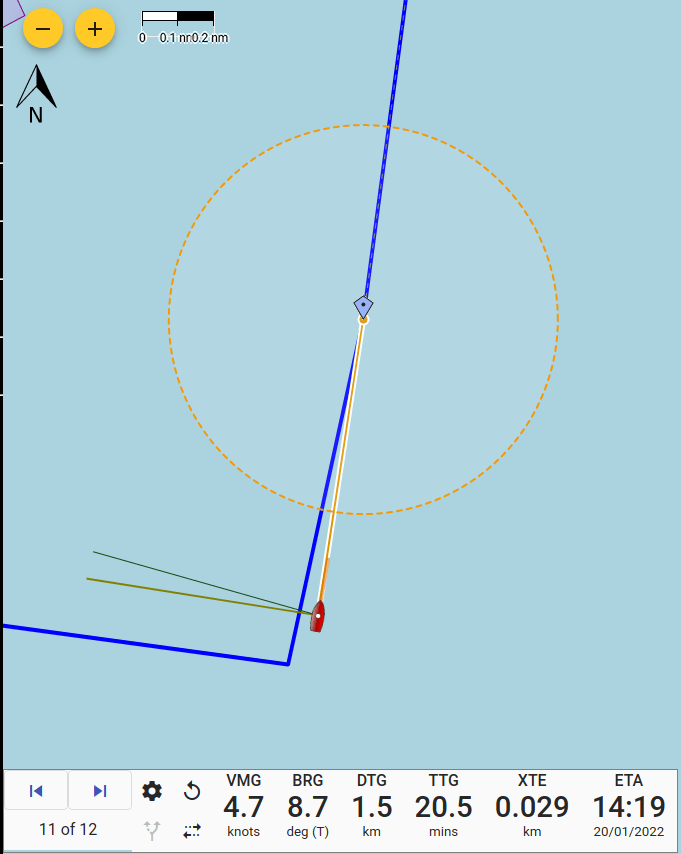

Once a destination has been set the following actions are available:

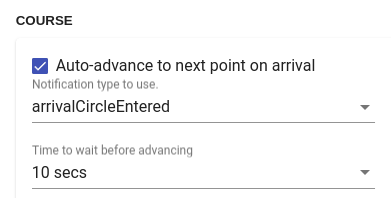

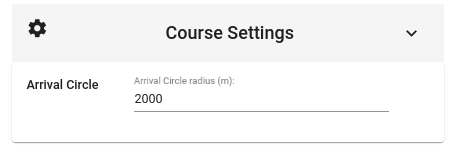

settings Click to display the Course Settings screen.
From this screen values such as Arrival Circle can be set.
replay Click to restart course calculations from the current vessel position.
multiple_stop When a route is active click this button to reverse the direction of the route point sequence.
alt_route Autopilot status indicator.
skip_next When a route is active click this button to advance to the next point in the sequence.
skip_previous When a route is active click this button to advance to the previous point in the sequence.

A waypoint can be set as the target for which navigation data is to be displayed by clicking the Navigate To button in either:

• A waypoint card in the Waypoint List

• The pop-up displayed when a waypoint is clicked.

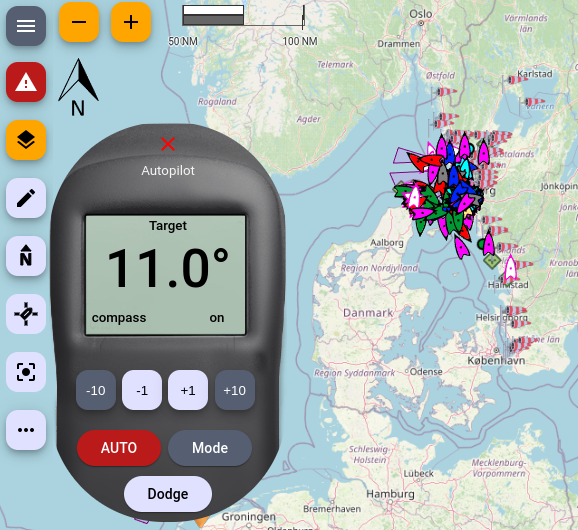

alt_route Autopilot

• Engage / Disengage the autopilot
• Setting the operation mode e.g. compass, route, gps, etc.
• Setting and adjusting the target heading
• Dodging obstacles

layers Resources / Layers

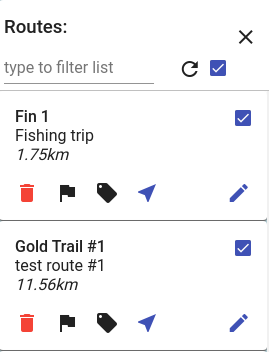

• directions Routes: Displays a list of available Routes.

• Filter Routes: Type into the text box to filter the list of routes.
• Display Route: Check the checkbox to display the route on the map.
• Delete Route: Click delete and you will be prompted to delete the route.

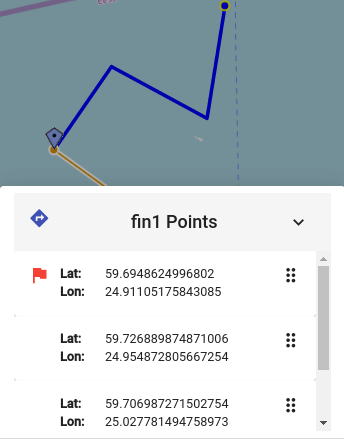

• Points: Click flag to view a list of route points where the following actions can be performed:


• Set the destination point: If displayed route is the Active Route, click a point to set it as the current destination along the route.
• Re-order points: Use the handle to drag points to a new position in the list.
  Note: If points of the Active Route have been re-ordered then you will not be able to set the destination point until changes have been applied.

• Notes: Clicking local_offer displays a list of Notes associated with the route. From this screen you can add, edit or delete notes.
• Activate: Clicking near_me sends a message to the server to set this route as the Active Route.
  The start of the route is set as the current destination.
  Use the Previous and Next point options in the more_horiz menu to select the destination point.
• Clear: Clicking clear_all sends a message to the server to clear the Active Route.
• Edit Properties: Click edit to edit route Name and Description.

You can also click on a Route on the map to display an information window with additional actions.

• Move: Clicking touch_app allows route points to be re-positioned.

---

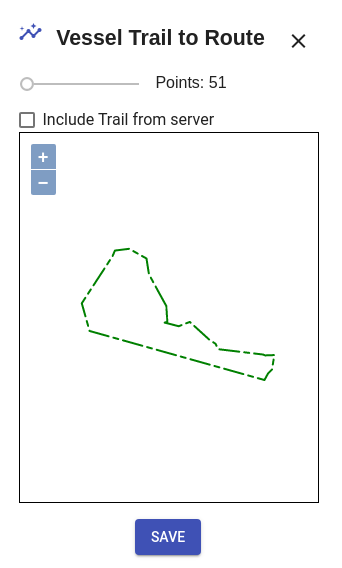

Trail to Route
You can create a route from the current Vessel trail by selecting the option from either the context menu or the more_horiz menu.

• The Trail to Route screen is displayed and the route generated from the locally stored vessel trail is shown.

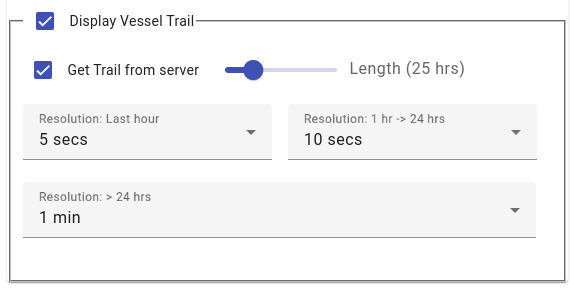

• Check the Include trail from server if you want to include trail data stored on the server.
  Recommended if you have the Get Trail from server option checked in Settings.
• Slide the tolerance control to vary the conversion algorithm in order to get the desired point distribution.
• Once satisfied with the generated route click Save to save the route to the Signal K server.

• location_on Waypoints: Displays a list of available Waypoints.

• Filter Waypoints: Type into the text box to filter the list of waypoints.
• Display Waypoint: Check the checkbox to display the waypoint on the map.
• Delete Waypoint: Click delete and you will be prompted to delete the waypoint.
  Note: A waypoint may be associated with a route. so take care when deleting waypoints!
• Notes: Clicking local_offer displays a list of Notes associated with the waypoint. From this screen you can add, edit or delete notes.
• Go To: Clicking near_me sends a message to the server to set this waypoint as the target to navigate to. The server should then send navigation data in relation to this location.
• Clear: Clicking clear_all sends a message to the server to clear the current destination.
• Center: Clicking center_focus_strong positions the map so the waypaoint is displayed in the center.
• Edit Properties Click edit to edit waypoint Name and Description.

• local_offer Notes: Displays a list of available Notes.

• Filter Notes: Type into the text box to filter the list of notes.
• Draft Notes: Click border_color to display only draft notes in the list.

• Display Notes: Check the checkbox to display notes on the map.
• Group: Clicking styles will display a list of notes in the same group.
• Properties: Click info_outline to open the note information / editor screen.

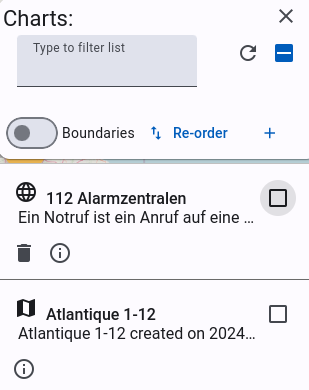

• Filter Charts: Type into the text box to filter the list of charts.
• Re-order charts: Click import_export to arrange the chart stack to ensure charts are displayed in the correct order. Drag and drop the charts within the list to chage the order.
• Chart Bounds: Click select_all to display the bounds of the listed charts. The bounding rectangle of each chart will be overlayed on the current map display.
• Add Chart Source: Click add to add a new chart source (i.e. WMTS, WMS, TileJSON, Mapbox Style). See the Freeboard-SK Wiki for more details.
• Properties: Click info_outline to display the chart properties.
• Display Chart: Check the checkbox to display the chart.

Freeboard by default will display:

• OpenStreetMap
• OpenSeaMap

which require an internet connection to be displayed.
Local Charts hosted on the Signal K server are identified with the map icon.

Charts are displayed in descending order of scale to ensure more detailed charts are on top.

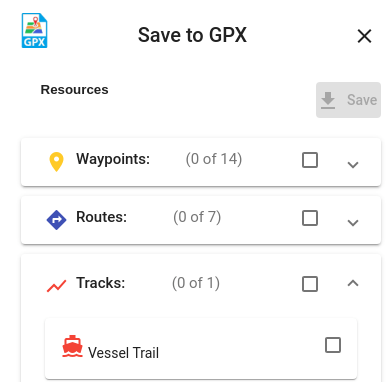

saveExport (to GPX)

• Click the layers Resources toolbar button and select the save Export option from the menu.

You will be presented with a screen that will allow you to select some or all of the Route and Waypoint resources from the Signal K server.
Additionally, the locally stored vessel trail can be saved as a GPX track.
Note: this option is only available when Get Trail from Server setting is not selected.

• Waypoints: Click the checkbox to select all Waypoints or expand the list and select the Waypoints to export.
• Routes: Click the checkbox to select all Routes or expand the list and select the Routes to export.
• Tracks: Click the checkbox to select all Tracks or expand the list and select the Tracks to export.

After selecting the required resources click Save to choose the name and location of the GPX file.

uploadImport (GPX, GeoJSON)

• Click the layers Resources toolbar button and select the upload Import option from the menu.

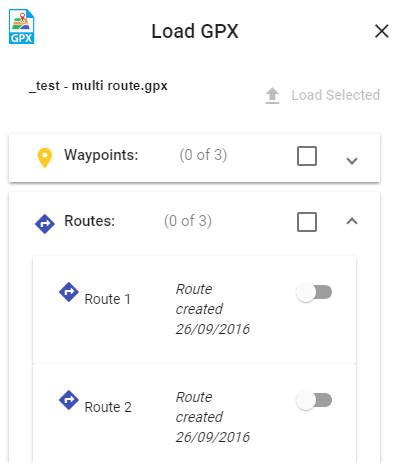

GPX File

Select some or all of the Route and Waypoint resources contained in the file.

• Waypoints: Click the checkbox to select all Waypoints or expand the list and select the Waypoints to import.
• Routes: Click the checkbox to select all Routes or expand the list and select the Routes to import.

After selecting the resources click Load Selected to load the resources onto the Signal K server.

GeoJSON Feature Collection

{
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "geometry": {
                "type": "LineString",
                "coordinates": [..]
            },
            "properties": {
                "name": "myRoute",
                "description": "a GeoJSON route"
            }
        },
        {
            "type": "Feature",
            "geometry": {
                "type": "Point",
                "coordinates": [..]
            },
            "properties": {..}
        }
    ]
}

Draw Menu

• edit The Draw menu is where you will find options to:

• Measure: Measure distances by clicking locations on the map.
• Draw Route: Create a route by clicking locations on the map.

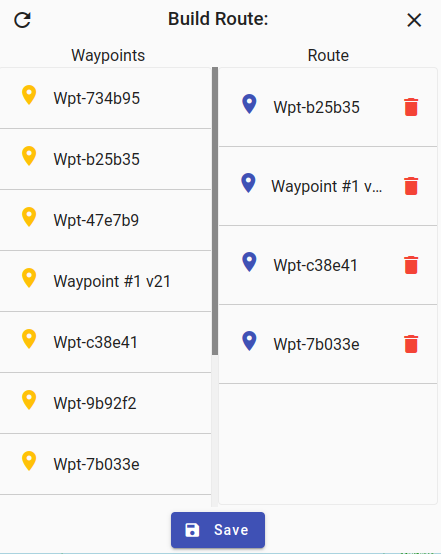

• Build Route: Displays the route builder screen where you can create a route from the available waypoints.
• Drop Waypoint: Create a waypoint by clicking a location on the map
• Add Note: Create a note at a specific location by clicking on the map
• Draw Region: Create a region by clicking locations on the map to define the region.

• To add waypoints to the route, drag the waypoint over to the route.
• Re-order the waypoints in the route by dragging them to the required location in the list.
• To remove a waypoint click the delete button.
• Click save Save to name the route and save it.

uploadResource Set

• Select the uploadResource Set menu option.
• Select the desired destination path from the drop-down list.
  Note: only paths detected under `signalk/v2/api/resources` are listed.
• Click and select (or drop) the file containing the resource data.
• Click Load to upload the file contents to the server.
Important: Freeboard does not attempt to validate the file contents in any way so please ensure you are uploading appropirate content for the selected destination.

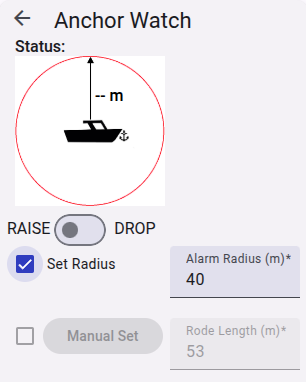

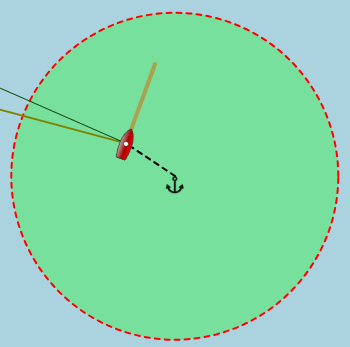

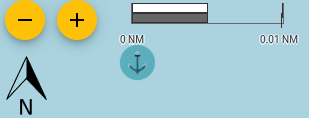

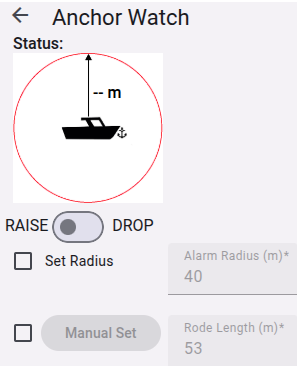

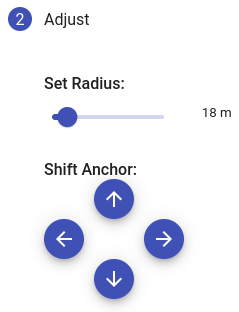

anchor Anchor Watch

The following modes of operation are available:

1. Drop and set (calculated radius using position)
2. Drop and set (specified radius)
3. Manual set (calculated radius using rode length)

1. Drop and set (calculated radius using position)

In this mode of operation, after dropping the physical anchor, slide the toggle to Drop then:

1. Let out the rode and when complete click Set. This will set the anchor position and the maximum radius. The server will commence watching the vessel position and raise an alarm if the vessel moves outside the maximum radius distance.

2. Drop and set (specified radius)

In this mode of operation, after dropping the physical anchor:

1. Check Set Radius.
2. Set the desired alarm radius (in meters).
3. Slide the toggle to Drop

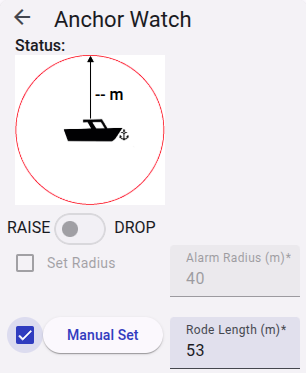

3. Manual set (calculated radius using rode length)

In this mode of operation, after dropping the anchor, and letting out the rode:

1. Check the box next to the Manual Set button.
2. Set the rode length (in meters).
3. Click the Manual Set button.

Once set the anchor position and alarm radius are displayed on the map.

The alarm radius can be adjusted by moving the Set Radius slider to the desired distance.

The Anchor Position can be shifted by using the arrow buttons OR on the map:

• Click the anchor icon (to enter modify mode)
• Drag the anchor feature to the new location.
• Click Finish to exit modify mode.

When the server calculates that the maxumum radius has been exceeded it sends a notification which triggers the alarm message.

An alarm message will be either just Visual or also Audible depending on the content of the notification from the server. An audible alarm can be muted by clicking the Mute button.

Acknowledging the alarm will minimise the alarm icon.
The icon will be displayed until the alarm has been cleared.
Clicking the icon will re-display the alarm message.

To clear the alarm and remove it from the screen click Acknowledge.

warning Alerts & Alarms

• Visual only (popup at the top of the screen)
• Sound only
• Visual & Sound
as specified by the notification message received from the Signal K server.

To RAISE an alarm:

• Click the warning button on the toolbar to display the Alerts List:
• Click the RAISE button and select the desired alarm type.

• Silencing the alert will mute any sound and the alert card remains visible.
• Acknowledging the alert will close the alert card and silence any sound. The alert remains an entry in the Alert List.

• The Alert is cancelled.
• The alert condition is returned to a normal state.
• The notification for the alert path value is null.

Vessels

Vessel associated Signal K "self"

Focussed Vessel

Vessel with stale data (>6 mins since last update)

Vessel marked as "Buddy"

Unspecified (AIS type 10-19)

Wing in Ground (AIS type 20-29)

Pleasure (AIS type 30-39)

High Speed Vessel (AIS type 40-49)

Special Vessel (AIS type 50-59)

Passenger Vessel (AIS type 60-69)

Cargo Vessel (AIS type 70-79)

Tanker Vessel (AIS type 80-89)

Other (AIS type 90-99)

• Show / Hide Vessels layer on the map
• Providing the ability select which Vessels to display.

To Show / Hide the Vessels Map Layer:

• From the more_horiz menu select either:
  • visibility Show Vessels
  • visibility_off Hide Vessels

To Select Vessels:

• From the menu menu select directions_boat Vessels.

• Filter Vessels: Type into the text box to filter the list of vessels.
• Display Vessel: Tick the checkbox to display the vessel on the map.
Freeboard by default will display all vessels

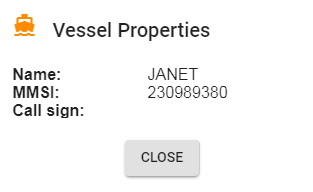

• info_outline Info: Click this button to display the vessel properties.
• center_focus_weak Focus: Click this button to set this vessel as the active vessel and direct all actions to this vessels path on the Signal K server.
  Note: Actions may fail if the Signal K server does not support PUTs to paths other than `vessels/self`
• clear_all Unfocus: Click this button to reset the active vessel to self.

Playback History

• menu Main Menu: Access the history Playback History option from the Main menu.

From the History Playback screen select:

• Context: to choose vessel(s) data. self or all
• Start Date: Date of playback stream start
• Start Time:Time of playback stream start
• Playback Rate: Rate of playback. 1= real-time, 5= 5 x real-time

Click Start to start the data stream.
Click Cancel to re-start the real-time data stream.

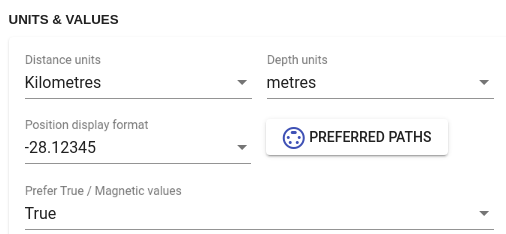

settings Settings

• Instrument Panel App: Select from a list of installed applications the one you wish to be displayed in the Instrument Panel.
  Note: The application selected should be responsive to display correctly within the space afforded by the instrument panel.
• Parameters: Enter parameters that will be appended to the Instrument App url.
• Halt App on hide: When checked the selected Intrument Panel App will be stopped when the Panel is hidden.
  To save resources on your device when the instrument panel is hidden clear this checkbox.
• Favourites: Use this to display a list of Web Apps installed on the Signal K Server which can then be selected as a Favourite.
  These selected Web App can be "switched in" for display in the Instrument Panel.
• Lock Follow Vessel: Check this box to remain in "Follow Vessel" mode when map is panned / moved.
• Do not Play Sounds: Check this box if you do not want any sounds played. (Overrides ALARM_METHOD in notification message.)
• Show DEPTH Alarm Messages: Check this box if you want received DEPTH notifications from the Signal K server to be displayed as an alarm message.
• Alarm Smoothing Time: Once the DEPTH alarm message has been acknowledged and the notification state has returned to Normal, this is the length of time that the notification must remain in Normal state before the alarm is re-triggered.
• Prevent Device Sleeping: Check this option to set the devices WakeLock upon start-up which prevents your device from entering sleep mode.
  Note: this setting is only available on devices / browsers which support the API.
  This can be set for the current session by clicking the visibility_off button on the right of screen.
• Dark Mode Setting: Use this setting to control the display theme (Light or Dark).

  • Use OS Setting - Selecting this option tells Freeboard follow the preferred display mode set by the hosting system.
    Note: This uses the prefers-color-scheme CSS media setting, if the browser does not support this feature then the Light theme is selected.
  • Use Signal K Mode - Set the display mode using the value of the environment.mode path. Dark theme is used when value is "night".
  • On - Turn Dark Mode on.

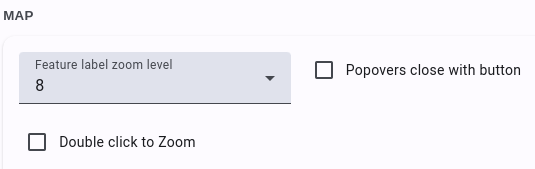

• Feature label zoom level: Select the zoom level at which labels for features on the map appear. Labels will be hidden at zoom levels below this value.
• Popover close with button: Select this option in order to a close a popover using a button rather than just clicking outside of it.
• Double click to Zoom: Select this option to enable zooming the map with a double click.

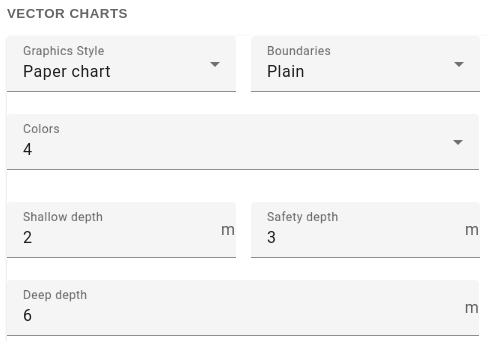

• Graphics Style: Select this option in order to a close a popover using a button rather than just clicking outside of it.
• Boundaries: Select from Plain or Symbolized.
• Colors: Select from 2 or 4 colors.
• Shallow Depth: Enter the depth in meters.
• Safety Depth: Enter the depth in meters.
• Deep Depth: Enter the depth in meters.

• perpendicularPassed (advancement occurs immediately notification is received.)
• arrivalCircleEntered (advancement occurs once Time to Wait has elapsed after notification has been receieved.)

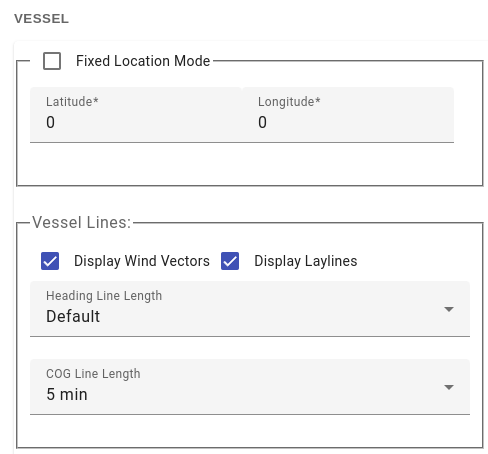

• Fixed Location Mode: Select when operating from a fixed location e.g. building, etc.
  Selecting this mode will change the vessel icon to
  Enter the latitude and longitude of the fixed location.
• Display Wind Vectors: Select to display wind vectors for the vessel on the map.
• Display Laylines: Select to display laylines when navigating to a destination.
• Heading Line Length: Select length of heading line displayed on the map.
  • Default: Calculates the length of the line displayed based on the vessel SOG and the map scale.
  • (x) NM Length of the line to display.
• COG Line: Display a line to the predicted location based on the selected time and the vessel's current SOG.
• Display Vessel Trail: Check this box if you want to display the vessel trail.
  By default Freeboard will display the vessel trail using a local cache maintaining up to 5000 points at a 5 second interval.
  • Get Trail from Server: Check this to retrieve vessel trail data from the server at the path signalk/v1/api/self/track.

  • Use the slider to set the length of track to retrieve from the server in hours. Time is relative to the current time.
    The Resolution settings define the number of track points returned by the server for the following time windows:
    • Last hour (default = 5 secs)
    • 1 hour -> 24 hours (default = 1 min)
    • > 24 hours (default = 5 min)
    Note: Selections will determine the volume of data transferred from the server which may impact performance.
    Trail data received from the server undergoes temporal simplification to minimise the data used to display the trail whilst maintianing integrity.

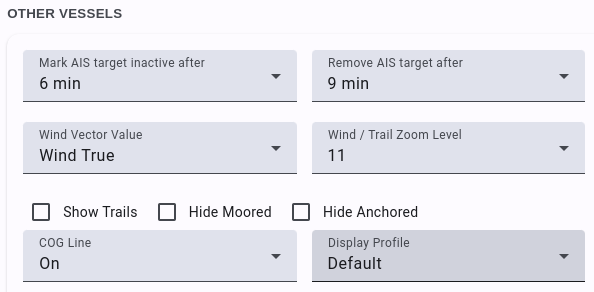

• Mark AIS Target inactive after: Maximum time (in minutes) elapsed between updates before the vessel is displayed as inactive.
• Remove AIS Target after: Maximum time (in minutes) elapsed between updates before the vessel is removed from map.
• Wind Vector Value: Wind True / Wind Apparent Value used to display wind vector for other vessels displayed on the map.
• Wind / Trail Zoom Level: The minimum Zoom level at which other vessels wind vector and trails will be displayed. (Default=15)
• Show Trails: Select to display trails of other vessels on map. Note: length of trail is limited in length to approx 1hr of data.
• Hide Moored: Select to hide vessels with a state of 'moored'. Note: Display is updated when next vessel update is received.
• Hide Anchored: Select to hide vessels with a state of 'anchored'. Note: Display is updated when next vessel update is received.
• COG Line: Select to show / hide COG vector for AIS vessels.
  Note: COG line length is calculated for 10 mins duration.

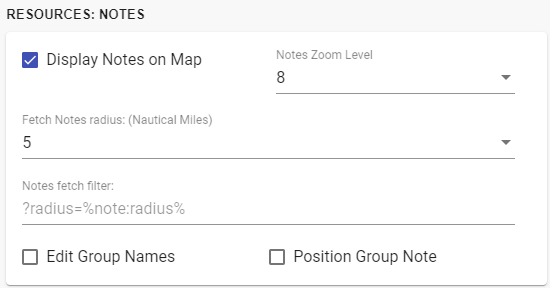

• Display Notes on Map: Un-check this box if you do not want to display NOTES on the map.
• Notes Zoom Level: Select the zoom level at which NOTES will appear on the map.
• Fetch Notes radius: Select the radius from the centre of the displayed map within which NOTES will be retrived from the server.
  A request to fetch Notes is triggered when the map centre moves more than 50% of this value.
• Notes Fetch Filter: This field allows you to specify a parameter string that will be used when fetching Notes from the Signal K server. This can be useful to reduce the number of Notes records returned or to only return Notes in a particular area.
  The string can contain %Tokens% to specify specific values.
  e.g. ?position=[%map:longitude%,%map:latitude%]&distance=%note:radius%
• Edit Group Names: By default the group attribute of a note will not be available in the note editor screen.
  Check this box if you want to be able to edit the group attribute.
• Position Group Note: By default adding a new note to a group will not prompt you for the psoition of the note.
  Checking this box will prompt you to place the note by clicking on the map.

• map:latitude: Latitude at centre of Map
• map:longitude: Longitude at centre of Map
• map:zoom: Map zoom level
• note:radius: The value set in the Fetch Notes within field

• Enable Video: Check this box to enable the display of a PiP video stream.
• URL: Enter the url of the video stream source.

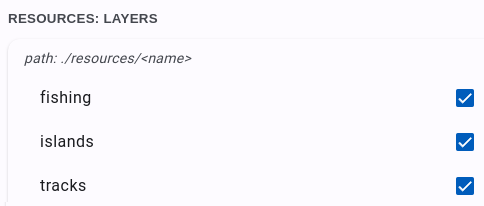

1. Tracks
2. Resource Sets

• Fetch Radius: When set, will only fetch resource set features with a position that is within the specified distance from the current map center. Select 0 to retrieve all features.

Tracks:

• Configure the Resources Provider plugin to serve the tracks path.
• Re-start the Signal K server
• Once the server has re-started Tracks will appear in the list of available resource paths.
• Select Tracks and this will display the show_chart Tracks entry in the layers layers list.

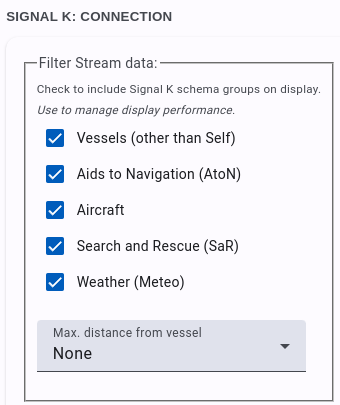

• Vessels: Display vessels (other than your own) on the map. (Default is checked)
• Aids to Navigation: Display AtoNs on the map. (Default is checked)
• Aircraft: Display aircraft on the map. (Default is unchecked)
• Search and Rescue: Display SaR beacons on the map. (Default is unchecked)
• Meteo (Weather): Display weather stations on the map. (Default is unchecked)


• Max Distance from Vessel: Set the distance from your vessel that targets must be within to be displayed on the map.
  The distance represents the radius of a bounding box around your vessel.
  Selecting None (default) will display all received targets.

tune URL Parameters

• Zoom Level
• North / Heading Up
• Move Map
• Signal K Host
• Port number

When one or more of these parameters are present, the supplied values will used to override stored configuration at start up.

Example: Start Freeboard-SK at zoom level to 15.
http://server:3000/@signalk/freeboard-sk?zoom=15

Example: Start Freeboard-SK in North up mode.
http://server:3000/@signalk/freeboard-sk?northup=1
or
http://server:3000/@signalk/freeboard-sk?northup

Example: Start Freeboard-SK in heading up mode.
http://server:3000/@signalk/freeboard-sk?northup=0

Example: Start Freeboard-SK in moving map mode (keep vessel centered).
http://server:3000/@signalk/freeboard-sk?movemap=1
or
http://server:3000/@signalk/freeboard-sk?movemap

Example: Start Freeboard-SK with moving map mode turned off.
http://server:3000/@signalk/freeboard-sk?movemap=0

Example: Connect to Signal K server at supplied address and port.
http://server:3000/@signalk/freeboard-sk?host=192.168.86.32&port=3100

science Experiments
